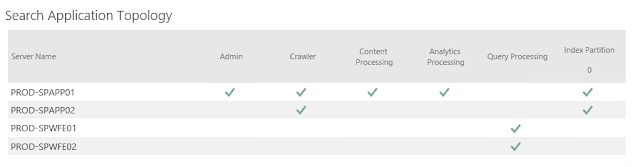

Make sure that the current active topology is healthy and that the search component that you are about to remove is Active.
Note: If you have more than one active index replica for an index partition, you can remove an index replica by performing the procedure Remove a search component in the article Manage search components in SharePoint Server 2013.

SharePoint 2013 Search - Add Index partition and Index replica For each 10 million items in the search index, you have to add a new index partition. When you add a new index partition, the search index has to be re-partitioned. Depending on the size of the search index, this re. #recreate search topology with new index component #reset the index if the bad component is the index #grab component name of faulty topology component and it's respective server name. Search Index Component of SharePoint 2013’s Search. Provides replication of index content between replicas (index components) within the same index partition as this index partition is a logical portion of the entire search index.? Each and every partition is served by one or more index components and the primary replica is set by default.

You cannot remove the last index replica of an index partition using this procedure. If you have to remove all index replicas from the search topology, you must remove and re-create the Search service application and create a completely new search topology that has the reduced number of index partitions.

Overview: This post aims to provide guidelines for building SharePoint 2013 Search farms. There are 6 Search components (labelled C1-C6 below) and 4 database types (labelled DB1-DB4). Index partitions are a big factor is search planning.

Adding an Index Partition Component Server in SharePoint 2013 Search Search Service Application. Script code!Add a new Index. After several hours of investigation, it became clear that the problem is part of the Index Partition and SharePoint Search Host Controller services. Reason: The problem came from the Search.

Example: Throughout this post I provide an example of a 60 million item search farm with redundancy/High Availability (HA).

Index partitions: Add 1 index partition per 10 million items is the MS recommendation, this really depends on IOPs and how the query is used. An twinned partition (partition column) is needed for HA, this will improve query time over a single partition.
Example: So assuming a max of 10 million items per index, to have a HA farm for 30 million items requires 6 partitions.

Sharepoint 2013 Search Index Partition 0

Index component (C1): 2 index components for each partition.
Example: 12 index components.

Query component (C2): Use 2 query processing components for HA/redundancy, add an additional 2 query components at 80 million items increase.
Example: 2 Query components.

Sharepoint 2013 Search Center

Crawl database (DB1): Use 1 crawl database per 20 million items. This is probably the most commonly overlooked item in search farms. The crawl database contains tracking and historical information about the crawled items. It also contains info such as the last crawl id, time etc, crawl history. Crawl component feeds into the crawl database. Medium usage should be under 100GB. Add more content database before 20 million or 100GB database size. My initial size is mdf 100 MB (growth 50MB) and the ldf is 300 MB (growth 50MB).
Example: 3 crawl databases at 20 million items each allows for a search farm containing 60 million items.

Link database (DB2): Use 1 link database per 60 million items. I believe 1 link database will handle up to 100 million items. Mdf 100 MB (growth 50 MB) and Ldf 25 MB (growth 25 MB).
Example: 1 link database.

Analytics reporting database (DB3): Add 1 search analytics reports database for each 500,000 unique items, viewed each day or every 10-20 million total items. This is the heavy search database. Add a new database to keep each Analytics reporting database under +-250GB. Mdf 100 MB (growth 50 MB) and Ldf 25 MB (growth 25 MB).
Example: Start with 1 and grow as needed.

Analytics Processing Component (C3):
Example: 2-4 Anaytics Processing components.

Content Processing Component (C4): processes crawled items and moves the item data to the index component. It’s function is to parses documents, performs property mapping and entity extraction, perform language processing, and ultimately moves crawled items into indexed items.
Example: 4 Content Processing components.

Admin component (C5): Use 1 administration components or 2 search for redundancy/HA. For all farm sizes.
Example:2 Admin components.

Admin database (DB4): Low usage, even in big farms, you only need 1 database. Should stay well under 100GB. Holds crawled and managed properties, query rules, topology and history. My initial size is mdf 100 MB (growth 10MB) and the ldf is 100 MB (growth 50MB).
Example: 1 Admin database.

CrawlComponent (C6): The crawl component crawls content sources and delivers crawled items including metadata to the Content Processing component. In SP2013 you don’t specify the relationship between the crawl database and the crawl component. The crawl component will distribute to all available crawl databases. The 3 types of crawls available in SP2013 are: Full, Incremental and Continuous (only works for SP2013 content). Schema changes still require a full crawl to pickup the change in SP2013. Crawl does not do as much analysis as was the case in SP2010 so it is a much lighter/faster process.
Example:2 Crawl components allows for HA and improved performance

Sharepoint 2013 Search Index Partition Recovery Software

Database Hardware: for the example use 8CPUs, 16GB of Ram, disk size depends on content but it is smaller than SP2010.

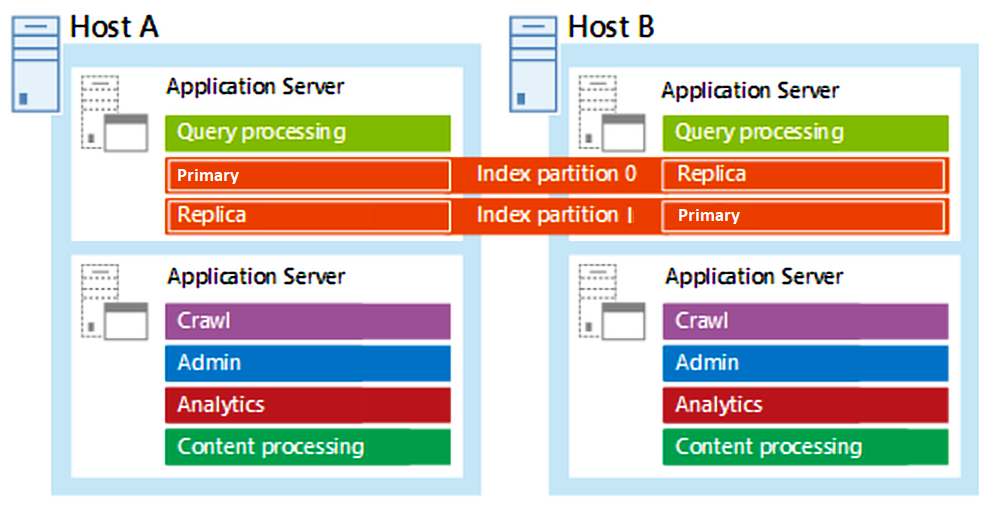

Placing components on VMs for the example:
Group your search roles onto servers:

Sharepoint 2013 Search Index Partition Search

Index & Query Processing
Analytics & Content Processing
Crawl, Content processing & Search Admin

Note: I have included suggested mdf and ldf sizing and growth assuming the full recovery model as I use AOAG (if you are using the default simple recovery model, only worry about the mdf sizes), these are based on my farms usage so your will need to vary but it is a good guide for a starting point untill you can monitor your own database growth patterns. Change the ldf and mdf settings as the default database settings are completely inappropriate. Growth must be in fixed MB (never percentages) and you do not as little ldf growth on the fly as possible. A good guidline is 100 MB mdf initial size with 50 MB growth and ldf are 25-50% of the size of the ldf and I would use 50MB min for ldf initial sizing, then set the ldf growth to be 50MB on all 4 search databases. Search ldfs are pretty hectic so in this post you will noting much higher ldf setting than I am mention in this note. Also checkout the SQL Checklist for SP2013 post. Backup frequency affects log/ldf file usage so check out this post to understand how your system database needs to be set (In short, backups frequency requires smaller ldf’s).

Database	mdf	mdf growth	ldf	ldf grow
SP_Search_Admin	100 MB	10 MB	100 MB	50 MB
SP_Search_CrawlStore	100 MB	50 MB	300 MB	100 MB
SP_Search_AnalyticsReportingStore	100 MB	50 MB	25 MB	25 MB
SP_Search_LinksStore	100 MB	50 MB	25 MB	25 MB
